Description

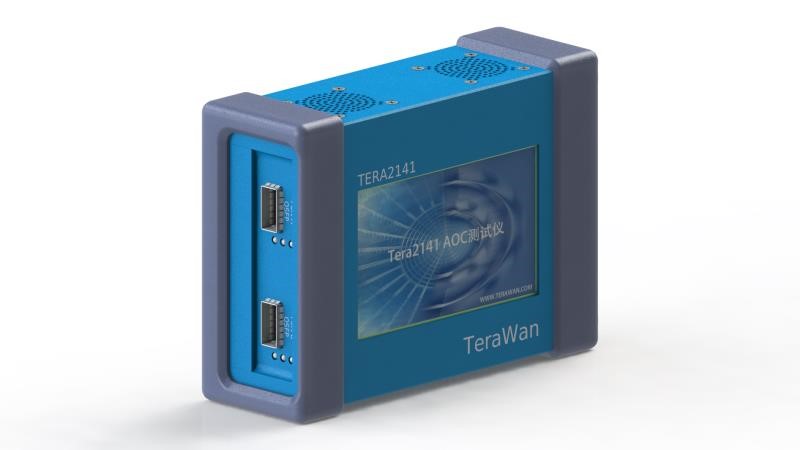

The Tera2141 is 40G/100G AOC tester, could provide 40G/100G optical module/AOC test/debug solution for R&D engineer and manufacture. 40G port could support both bit rate setting: 41.225Gb/s, 45Gb/s and 56Gb/s(64GFC). 100G port could support both bit rate setting: 103.125Gb/s and 113Gb/s

The Tera2141 could support transceiver DDM function and check the module live status. And pattern generator and BER error checker, which could work individual support 40G/100G test.

?  6~9V power supply, could support remote control in lab.

?  Support different PRBS pattern, include PRBS7/PRBS15/PRBS31

?  Could parallel test two port: 40G and 100G

?  Support realtime BER report for both port

?  Support Error bit insertion function for troubleshooting

?  Support Alarm-history function,  record alarm history at long-term testing

Power supply

Tera2141 adapter 9V DC power supply. Power supply must not exceed 9V, higher than 9V will damage the analyzer permanently.

Console Interface

Tera2141 use the COM for the remote control and test function.

     Note: Ethernet interface is reserve for future use, not support this version.

Traffic Interface

Tera2141 have two transceiver port:

The two port is 40G/100G port, support 40G QSFP+ module function and performance test and 100G QSFP28 module function and performance.

Tera2141 GUI Interface

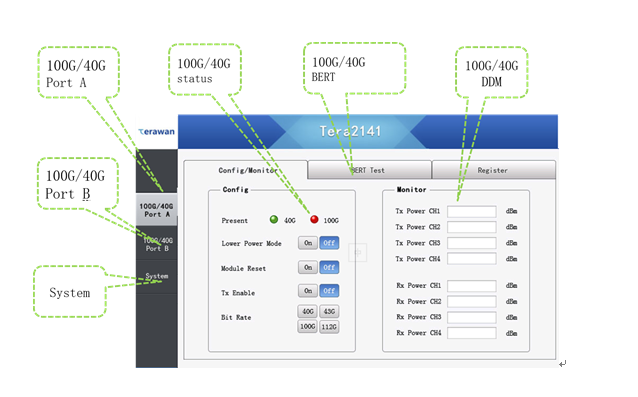

The Tera2141 have 5inch LCD, could operate use the touch Pen. The start page is as following:

Touch the LCD, will enter main frame: test mode as following, default testing is for the 40G/100G test page

Operate procedure

More test or operate procedure please contact us
