Tera2000 10~100G Auto test station

BASIC INFO

Description

Tera2000 auto test station provide automatic function and performance test for the 10G/25G/40G/100G, the Tera2000 main focus on 10G~100G transceiver BER and key parameter test.

Tera2000 platform include the Tera2040 (VOA and optical Power meter), Tera2100 BERT system, Tera2120 Test board (also use the Tera2140 module analyzer), DCA 86100 from Keysight(Agilent) and Auto control software system(support Win7/Win10).

The platform could provide TP2/TP4/TP3 key parameter of the module for manufacture.


**the platform could use customer's test equipment (VOA/Power meter,DCA).


Tera2000 Key paramete

Tera2000 auto test station is for 10G~100G transceiver, could customize the test spec and test procedure:

Optimization parameter

Tx side: Output power, Extinction ratio, Rise time and fall time.

Rx side: Sensitivity, equalization

Auto calibration parameter (temperature, Power supply, Bias current, output power, input power etc.).

Key customized parameter.

            System test parameter.

Transmitter: Output power, Er, mask margin, Crosspoint, Jitter etc.

Receiver: Sensitivity, Overload, Alarm, hysteresis

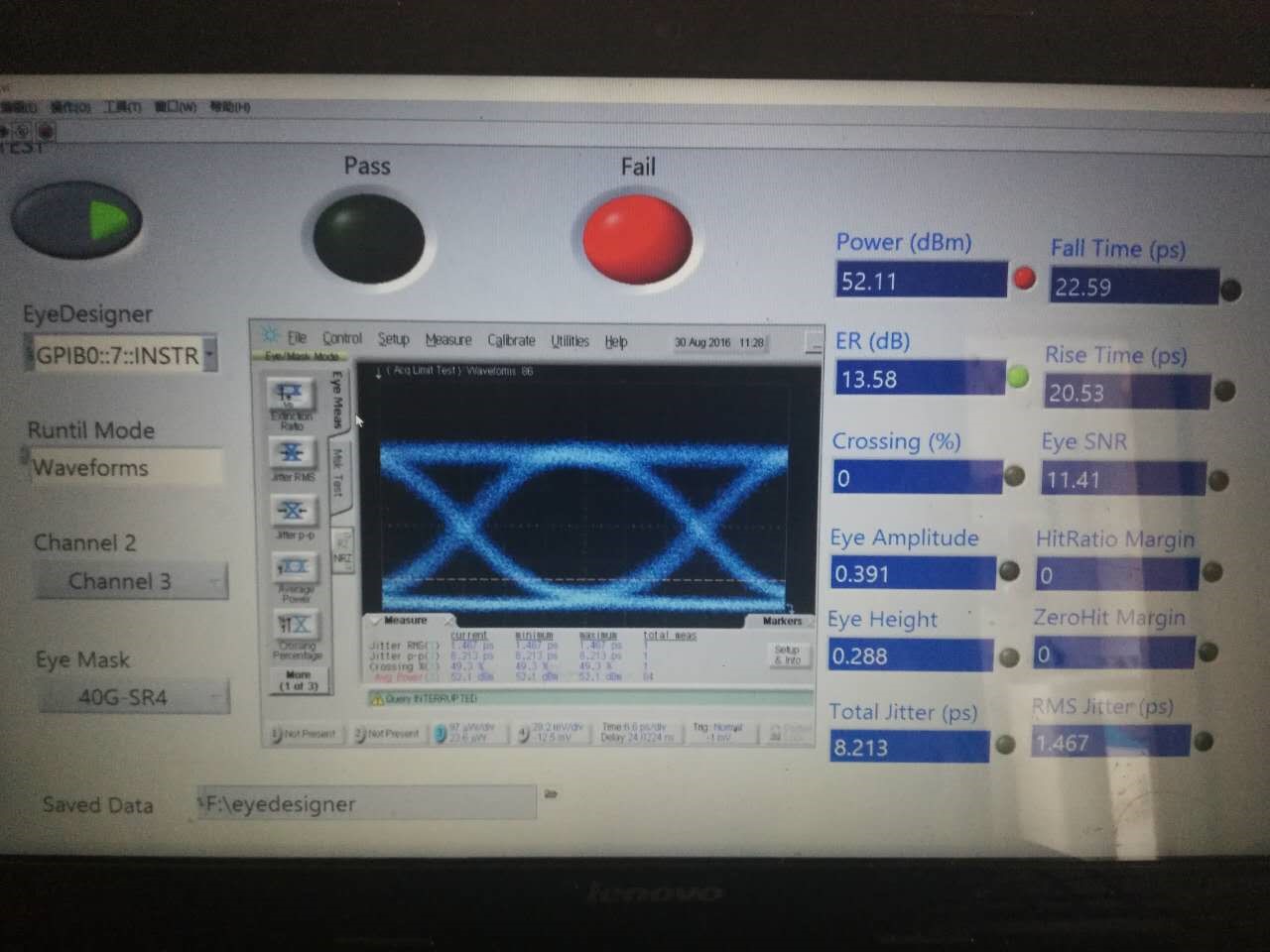

Tera2000 remote control GUI

Tera2000 remote control GUI could support Win7/Win10 as following show:

PREVIOUS:TSCQ1012 40~100G 8-ch BERT system
NEXT:Tera2040 1~4 Ch VOA & Power meter
